Analytical and medical equipment

Product development and production

Application: immunology, biosecurity, veterinary medicine, medicine, biology, scientific research

See more Request a call

Mission statement

We develop products and technologies that solve people's problems.

Projects overview

Aivok LLC develops and manufactures analytical and medical equipment, as well as single optical and electrical modules. Software development. Scientific research.

We guide each project through its lifetime.

  • developing
  • prototype
  • mass production
Image Description
Image Description

KEY COMPETENCIES

  • Optics
  • Microelectronics
  • Microfluidics
  • Registration of optical radiation of low and ultra-low intensity
  • Software development
  • Scientific simulation

Products

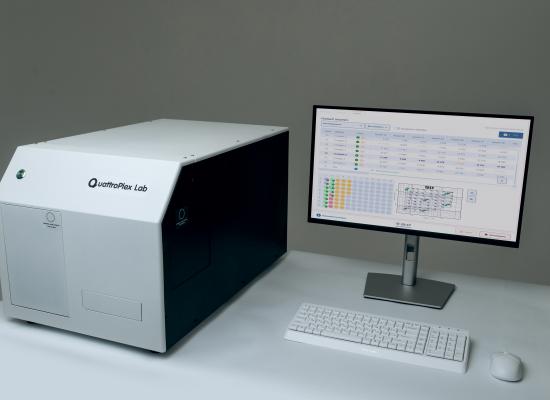

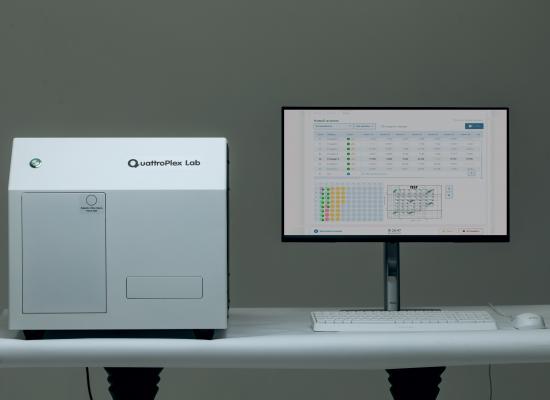

QuattroPlex

QuattroPlex is an open platform for multiplex immunofluorescent analysis (up to 30 pathogens or infections can be analyzed simultaneously).

Application: immunology, biosafety, veterinary medicine, scientific research.



We have developed optics, electronics, fluidics, data analysis algorithms, Linux software, case design.



Request a call

Multiplexing and Speed

Multiplex detection of pathogens or infections can dramatically speed up the time of analysis

Flexibility and scale

Infections diagnosis in humans and animals

Production

We manufacture devices and reagents in our own facility

Affordable price

Biolumix

Biolumix multiplex immunoassay kits for QuattroPlex instruments.

Application: immunology, biosafety, veterinary medicine, scientific developments.



We have developed biochemical components of the kit, data analysis algorithm and kit package design.



Request a call

Termix

Compact and affordable thermocycler for PCR analysis.

Time saving
Despite its small size, TERMIX has a maximum heating and cooling rate of 2°C per second

Economical
TERMIX is affordable at only $1000.

PCR
The heated lid allows PCR to be carried out without the use of mineral oil. The user-friendly graphical interface makes it possible to configure the thermal cycling program very easily.

Machine
Ramp rate: max 2°C
Temperature range: 10°C to 100°C
Lid temperature range: 50°C to 120°C
Display: Color LCD 1.8”
Dimensions: 160mm x 100mm x 100 mm
Weight: 700g
Power supply: 16V
Capacity: 16 wells (200 uL tubes)

Extra small
TERMIX does not take up much space on your desk and it weighs the same as a bottle of soda.



Request a call


Our team

Image Description

Sergey Dolgushin, Ph.D.

Director
Image Description

Vyacheslav Seleznev, Ph.D.

CAD designer
Image Description

Pavel Shalaev

R&D. Production
Image Description

Ivan Stanovoy

Production and technical support

Contacts

124498, Russia, Moscow, Zelenograd, proezd 4922, 4/5
